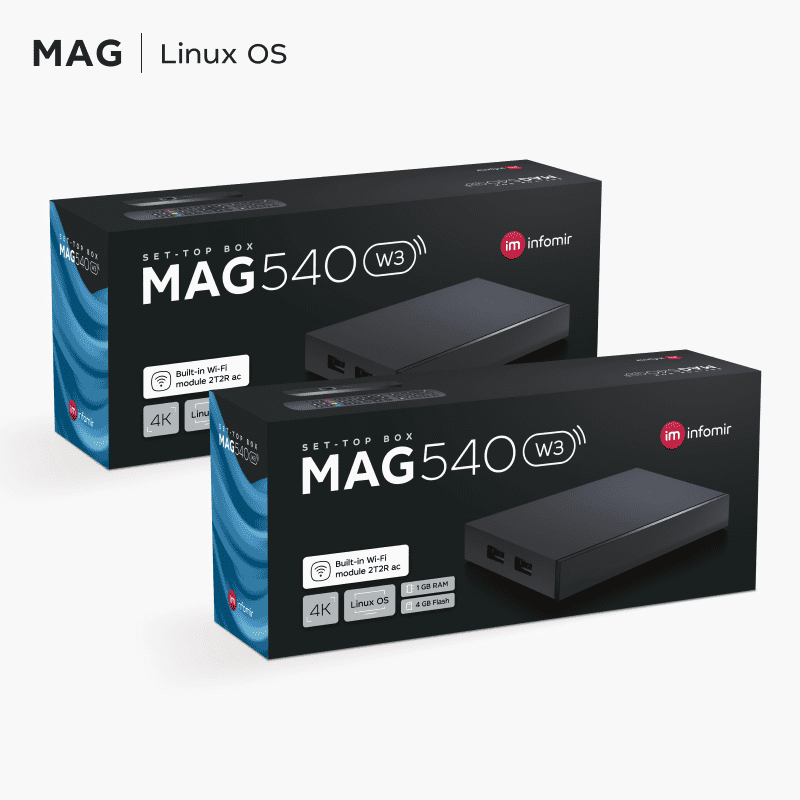

MAG540w3 x2 Pack – 4K Linux IPTV Set-Top Boxes with Wi-Fi
€217.77
Instead of €217.78
Tax included
Linux 4.9 STB bundle with built-in Wi-Fi — Amlogic S905Y4 chipset, 4K/HEVC support. Two units.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Comments (0)
This two-device MAG540w3 bundle brings the same dependable Linux-based performance as the MAG540, with the added convenience of a built-in Wi-Fi module. At the core of each unit is the Amlogic S905Y4-B chipset paired with a quad-core ARM Cortex-A35 processor, delivering stable, trouble-free operation even under demanding workloads.
Getting online is simple — connect via the integrated Wi-Fi module or the 100 Mbps Ethernet port, whichever suits your setup best. Eight-channel Dolby Digital Plus™ support lets you hook up to seven speakers plus a subwoofer, wrapping viewers in immersive surround sound.
Each MAG540w3 ships with an ergonomic infrared remote, and two built-in USB 2.0 ports let you add a mouse, keyboard, or external storage for extra convenience.
MAG540w3 specifications
Hardware
| Chipset | Amlogic S905Y4 |
| Processor | Quad-core ARM Cortex-A35, 2,000 MHz |
| Performance | 16 500 DMIPS |
| RAM | 1 GB DDR3 |
| Flash memory | 4 GB eMMC |
Software
| Operating system | Linux 4.9 |
| Middleware supported | Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available |
Interfaces
| HDMI | HDMI 2.1 |
| Ethernet | 100 Mbps |
| USB | 2 × USB 2.0 |
| Wi-Fi | Built-in 2T2R ac Wi-Fi module |
Sources of media content
| Media sources | PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices |
Audio and video
| Audio formats | MP3, MPA, M4A, OGG, WAV, AAC |
| Video modes | 2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL |
| Video codecs | AV1, H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support |
| Video containers | TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captioning |
| Playlist formats | M3U, M3U8, PLS, CUE |
Standard set
| Package contents | MAG540w3 set-top box, user manual, HDMI cable, power adapter, remote control, 2 × AAA batteries, packaging |
Dimensions
| Width/depth/height | 120 × 78 × 21 mm |
| Weight | 110 g |
*Infomir does not distribute, broadcast, or otherwise provide television or video content.
