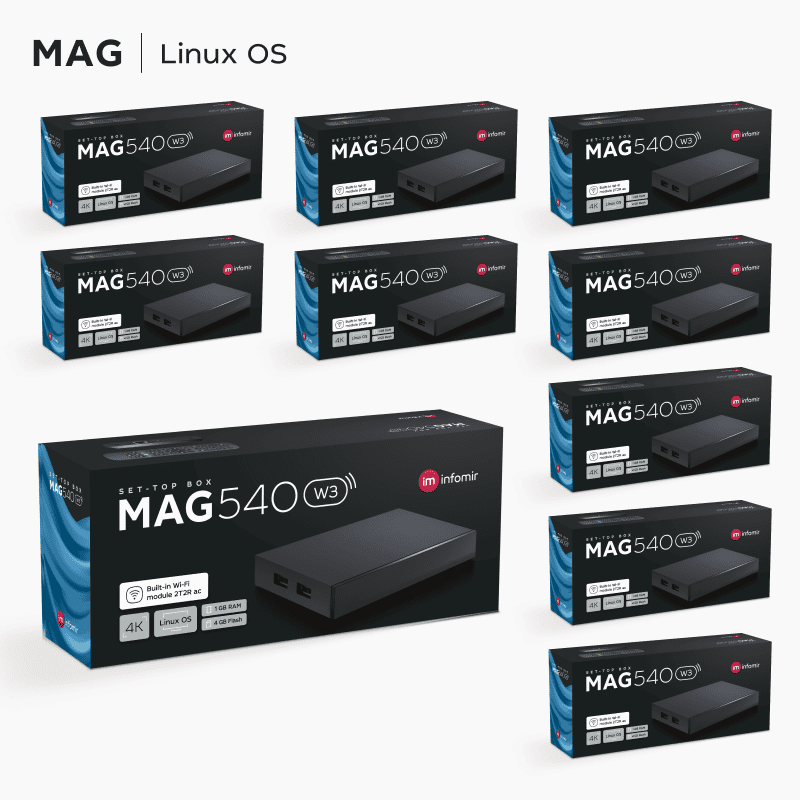

MAG540w3 x10 Pack – 4K Linux IPTV Set-Top Boxes with Wi-Fi
€1,035.30
Instead of €1,088.90
Tax included
Ten-unit set-top box bundle with Linux 4.9 and built-in Wi-Fi — Amlogic S905Y4 chipset with 4K and HEVC support.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Comments (0)
Want to use ten set-top boxes at once? This ten-unit MAG540w3 bundle delivers seamless playback of high-resolution content up to 4K HDR. Each device is equipped with the Amlogic S905Y4 chipset and a quad-core ARM Cortex-A35 processor. Thanks to the Linux operating system and the combination of powerful hardware and stable software, every set-top box can run for months without requiring a reboot.
Support for eight-channel Dolby Digital Plus™ places viewers right in the middle of the action. Built-in Wi-Fi and a standard Ethernet port also give each device maximum flexibility when connecting to the network.
MAG540w3 specifications
Hardware
| Chipset | Amlogic S905Y4 |
| Processor | Quad-core ARM Cortex-A35, 2,000 MHz |
| Performance | 16 500 DMIPS |
| RAM | 1 GB DDR3 |
| Flash memory | 4 GB eMMC |
Software
| Operating system | Linux 4.9 |
| Middleware supported | Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available |
Interfaces
| HDMI | HDMI 2.1 |
| Ethernet | 100 Mbps |
| USB | 2 × USB 2.0 |
| Wi-Fi | Built-in 2T2R ac Wi-Fi module |
Sources of media content
| Media sources | PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices |
Audio and video
| Audio formats | MP3, MPA, M4A, OGG, WAV, AAC |
| Video modes | 2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL |
| Video codecs | AV1, H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support |
| Video containers | TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captioning |
| Playlist formats | M3U, M3U8, PLS, CUE |
Standard set
| Package contents | MAG540w3 set-top box, user manual, HDMI cable, power adapter, remote control, 2 × AAA batteries, packaging |
Dimensions
| Width/depth/height | 120 × 78 × 21 mm |
| Weight | 110 g |
*Infomir does not distribute, broadcast, or otherwise provide television or video content.
