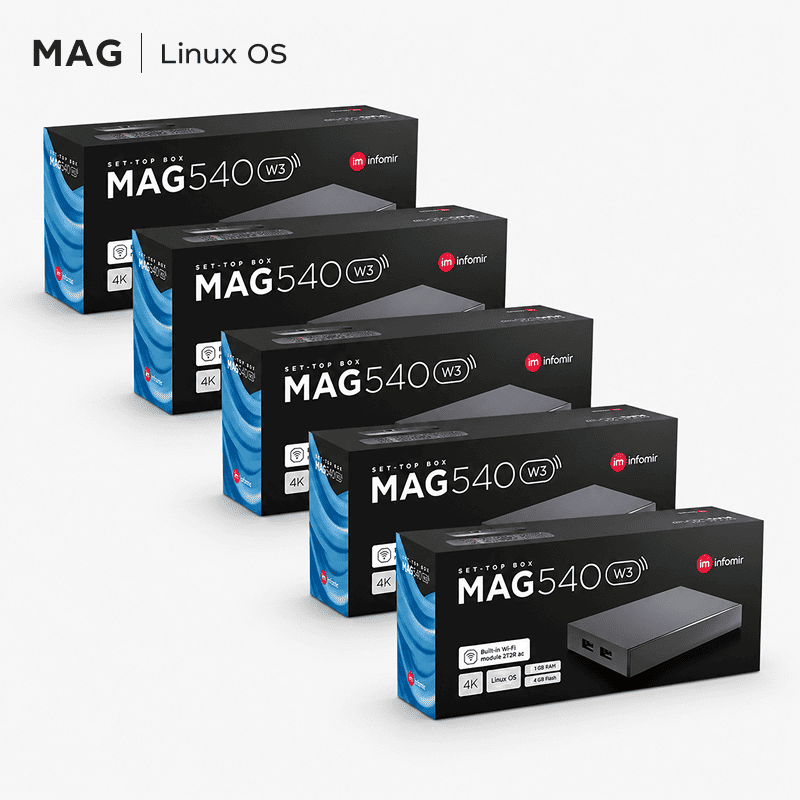

MAG540w3 x5 Pack – 4K Linux IPTV Set-Top Boxes with Wi-Fi
€517.65
Instead of €544.45
Tax included
Five-unit Linux 4.9 STB bundle with built-in Wi-Fi — Amlogic S905Y4 chipset, 4K/HEVC support.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Comments (0)
Deploying five set-top boxes at once? This MAG540w3 five-device bundle delivers effortless playback of high-resolution content, including full 4K HDR, thanks to the Amlogic S905Y4 chipset and quad-core ARM Cortex-A35 processor at the heart of each unit. Running on Linux, the combination of solid hardware and stable software lets every box stream for months without needing a reboot.
Eight-channel Dolby Digital Plus™ audio support puts viewers right in the middle of the action, while an integrated Wi-Fi module alongside the standard Ethernet port gives each device full flexibility in how it connects to the network.
MAG540w3 specifications
Hardware
| Chipset | Amlogic S905Y4 |
| Processor | Quad-core ARM Cortex-A35, 2,000 MHz |
| Performance | 16 500 DMIPS |
| RAM | 1 GB DDR3 |
| Flash memory | 4 GB eMMC |
Software
| Operating system | Linux 4.9 |
| Middleware supported | Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available |
Interfaces
| HDMI | HDMI 2.1 |
| Ethernet | 100 Mbps |
| USB | 2 × USB 2.0 |
| Wi-Fi | Built-in 2T2R ac Wi-Fi module |
Sources of media content
| Media sources | PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices |
Audio and video
| Audio formats | MP3, MPA, M4A, OGG, WAV, AAC |
| Video modes | 2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL |
| Video codecs | AV1, H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support |
| Video containers | TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captioning |
| Playlist formats | M3U, M3U8, PLS, CUE |
Standard set
| Package contents | MAG540w3 set-top box, user manual, HDMI cable, power adapter, remote control, 2 × AAA batteries, packaging |
Dimensions
| Width/depth/height | 120 × 78 × 21 mm |
| Weight | 110 g |
*Infomir does not distribute, broadcast, or otherwise provide television or video content.
