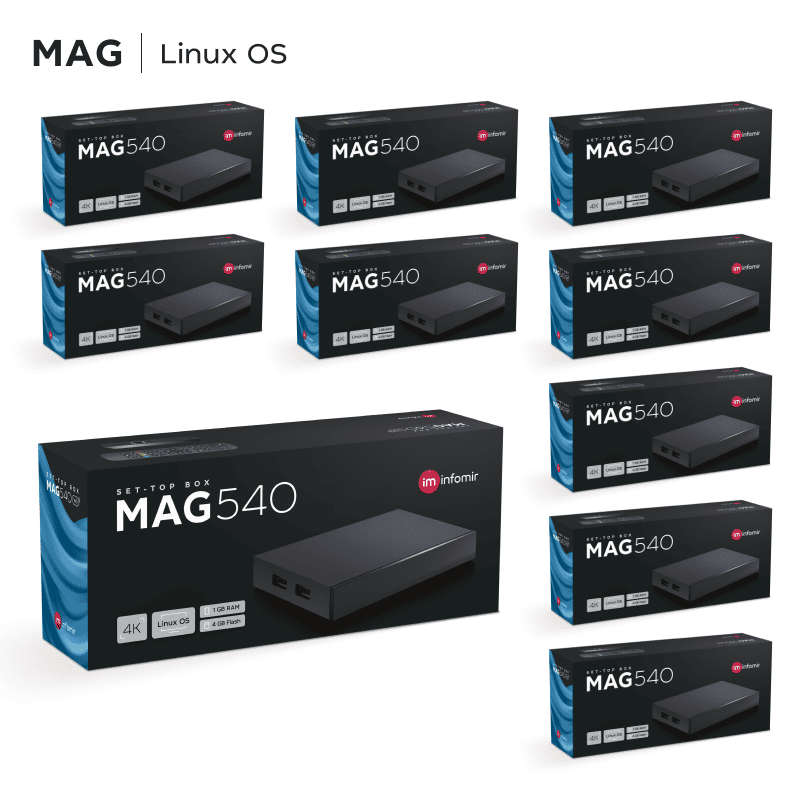

MAG540 x10 Pack – 4K Linux IPTV Set-Top Boxes
€938.91
Instead of €975.70
Tax included
Ten-unit Linux 4.9 STB bundle — Amlogic S905Y4 chipset, 4K and HEVC support.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Comments (0)
Need multiple set-top boxes for your home, rental properties, or a shared purchase? This ten-unit MAG540 bundle is a practical and budget-friendly way to equip several TVs at once. Each device supports a wide range of popular video formats and codecs straight out of the box, making the pack suitable for large households, multiple properties, and other multi-device setups.
Every MAG540 runs on Linux and is powered by the Amlogic S905Y4 chipset with a quad-core ARM Cortex-A35 processor. This combination delivers the performance required for smooth playback of demanding 4K HDR content while maintaining stable operation. Reliable software and capable hardware allow the devices to run continuously for extended periods without frequent restarts.
Built-in USB ports make it easy to connect a mouse, keyboard, or external storage device, while helping maintain consistent playback even when network bandwidth is limited. Eight-channel Dolby Digital Plus™ support completes the experience with rich, immersive surround sound for movies, series, and live content.
MAG540 specifications
Hardware
| Chipset | Amlogic S905Y4 |
| Processor | Quad-core ARM Cortex-A35, 2,000 MHz |
| Performance | 16 500 DMIPS |
| RAM | 1 GB DDR3 |
| Flash memory | 4 GB eMMC |
Software
| Operating system | Linux 4.9 |
| Middleware supported | Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available |
Interfaces
| HDMI | HDMI 2.1 |
| Ethernet | 100 Mbps |
| USB | 2 × USB 2.0 |
Sources of media content
| Media sources | PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices |
Audio and video
| Audio formats | MP3, MPA, M4A, OGG, WAV, AAC |
| Video modes | 2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL |
| Video codecs | AV1, H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support |
| Video containers | TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captioning |
| Playlist formats | M3U, M3U8, PLS, CUE |
Standard set
| Package contents | MAG540 set-top box, user manual, HDMI cable, power adapter, remote control, 2 × AAA batteries, packaging |
Dimensions
| Width/depth/height | 120 × 78 × 21 mm |
| Weight | 110 g |
*Infomir does not distribute, broadcast, or otherwise provide television or video content.
