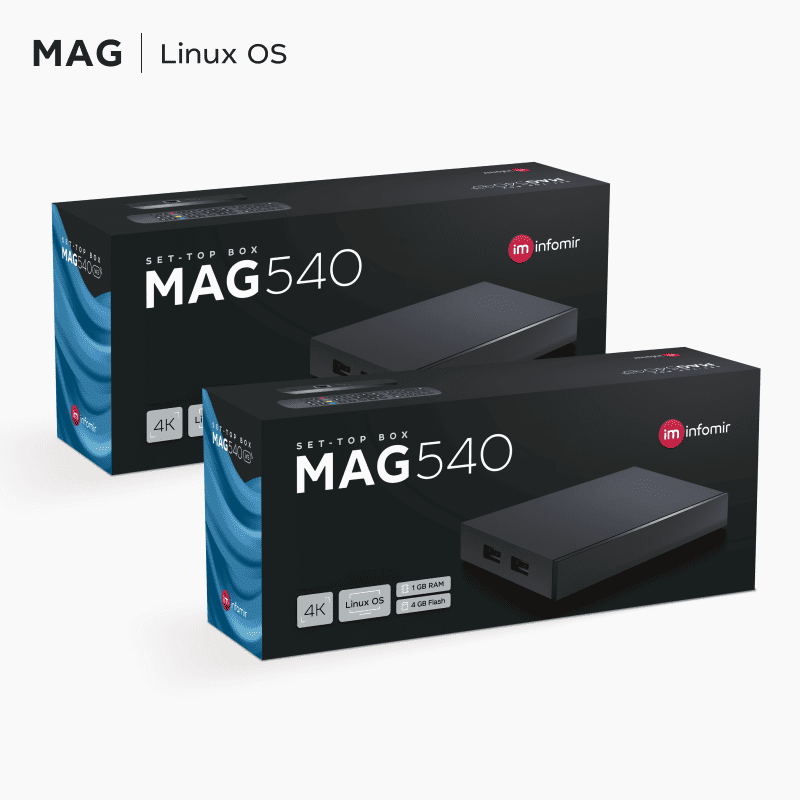

MAG540 x2 Pack – 4K Linux IPTV Set-Top Boxes
€195.14
Instead of €195.14
Tax included
Linux 4.9 set-top box bundle — Amlogic S905Y4 chipset, 4K and HEVC support. Two units.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Comments (0)
This two-unit MAG540 bundle is a budget-friendly, up-to-date pick for end users and IPTV/OTT operators looking to deploy reliable set-top boxes without overspending. Both devices support the vast majority of common video formats and codecs straight out of the box.
Each MAG540 runs on Linux and is built around the Amlogic S905Y4 chipset with a quad-core ARM Cortex-A35 processor — hardware that's more than capable of handling demanding 4K HDR playback while keeping bitrates modest. Thanks to this combination of stable software and solid hardware, the units are designed to run for extended stretches without needing a restart.
Built-in USB ports make it simple to connect a mouse, keyboard, or external storage, ensuring smooth playback of high-quality content even under limited bandwidth. Eight-channel Dolby Digital Plus™ audio support rounds out the package with immersive, cinema-style surround sound.
MAG540 specifications
Hardware
| Chipset | Amlogic S905Y4 |
| Processor | Quad-core ARM Cortex-A35, 2,000 MHz |
| Performance | 16 500 DMIPS |
| RAM | 1 GB DDR3 |
| Flash memory | 4 GB eMMC |
Software
| Operating system | Linux 4.9 |
| Middleware supported | Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available |
Interfaces
| HDMI | HDMI 2.1 |
| Ethernet | 100 Mbps |
| USB | 2 × USB 2.0 |
Sources of media content
| Media sources | PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices |
Audio and video
| Audio formats | MP3, MPA, M4A, OGG, WAV, AAC |
| Video modes | 2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL |
| Video codecs | AV1, H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support |
| Video containers | TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captioning |
| Playlist formats | M3U, M3U8, PLS, CUE |
Standard set
| Package contents | MAG540 set-top box, user manual, HDMI cable, power adapter, remote control, 2 × AAA batteries, packaging |
Dimensions
| Width/depth/height | 120 × 78 × 21 mm |
| Weight | 110 g |
*Infomir does not distribute, broadcast, or otherwise provide television or video content.
