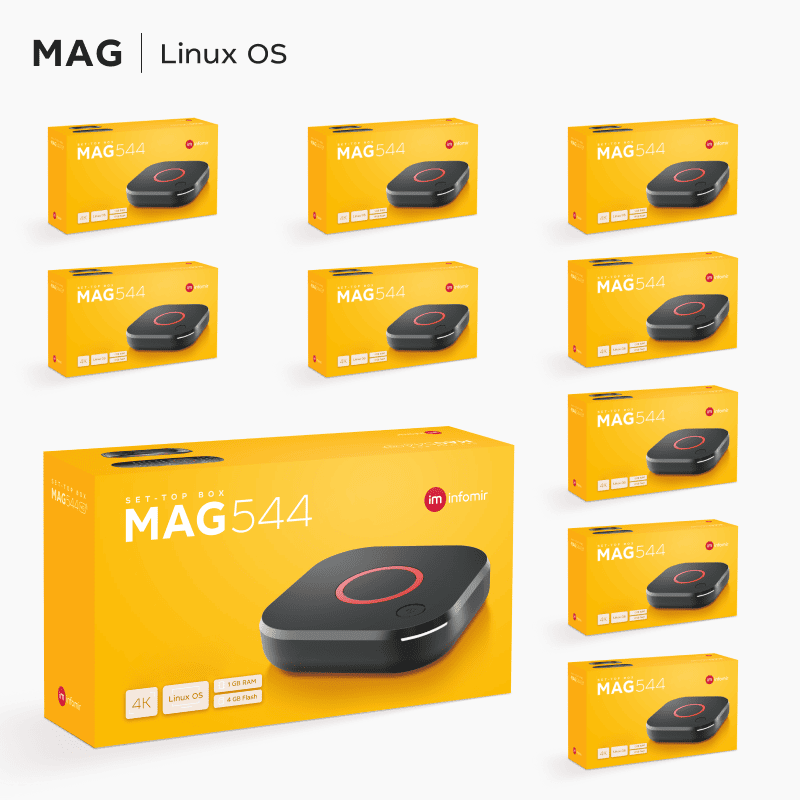

MAG544 x10 Pack – 4K Linux IPTV Set-Top Boxes Wholesale
€967.47
Instead of €1,011.40
Tax included
Ten-unit Linux 4.9 STB bundle — Amlogic S905Y4 chipset, 4K and HEVC support.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Comments (0)
Need several set-top boxes for your home, rental accommodation, or a group purchase? This ten-device MAG544 bundle offers a convenient and cost-effective solution for setting up multiple TVs at once. Each unit supports a broad selection of widely used video formats and codecs right out of the box, making the pack a good fit for larger households, several properties, and other multi-device environments.
Each MAG544 runs on Linux and features the Amlogic S905Y4 chipset with a quad-core ARM Cortex-A35 processor. This hardware combination provides the power needed for smooth playback of demanding 4K HDR content while ensuring stable day-to-day performance. Dependable software and capable components allow the devices to operate for long periods without requiring regular restarts.
Integrated USB ports make it simple to connect a mouse, keyboard, or external storage device, while playback remains smooth even when available network bandwidth is limited. Support for eight-channel Dolby Digital Plus™ rounds out the experience with clear, immersive surround sound for films, TV series, and live programming.
MAG544 specifications
Hardware
| Chipset | Amlogic S905Y4 |
| Processor | Quad-core ARM Cortex-A35, 2,000 MHz |
| Performance | 16 500 DMIPS |
| RAM | 1 GB DDR3 |
| Flash memory | 4 GB eMMC |
Software
| Operating system | Linux 4.9 |
| Middleware supported | Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available |
Interfaces
| HDMI | HDMI 2.1 |
| Ethernet | 100 Mbps |
| USB | 2 × USB 2.0 |
Sources of media content
| Media sources | PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices |
Audio and video
| Audio formats | MP3, MPA, M4A, OGG, WAV, AAC |
| Video modes | 2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL |
| Video codecs | AV1, H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support |
| Video containers | TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captioning |
| Playlist formats | M3U, M3U8, PLS, CUE |
Standard set
| Package contents | MAG544 set-top box, user manual, HDMI cable, power adapter, remote control, 2 × AAA batteries, packaging |
Dimensions
| Width/depth/height | 115 × 115 × 28 mm |
| Weight | 170 g |
*Infomir does not distribute, broadcast, or otherwise provide television or video content.
