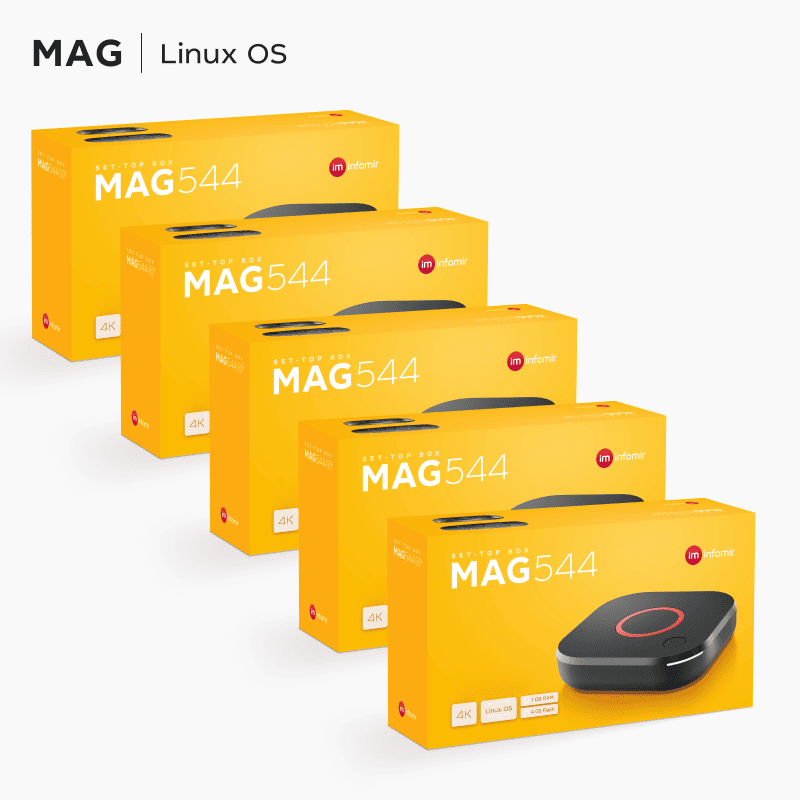

MAG544 x5 Pack – 4K Linux IPTV Set-Top Boxes Wholesale
€483.74
Instead of €505.70
Tax included
Five-unit compact Linux 4.9 STB bundle — Amlogic S905Y4-B chipset, 4K and HEVC support.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Comments (0)
Fit out five rooms or workstations with this five-device MAG544 bundle, built around reliable Linux hardware in a genuinely space-saving form factor. Each unit runs on the Amlogic S905Y4 SoC with a quad-core ARM Cortex-A35 processor, engineered to operate for months without a reboot.
With HEVC-compressed 4K playback, every device delivers high-definition picture quality even at lower bitrates, with no lag or buffering. Connect any unit to a modern TV or receiver and enjoy crisp, detailed Dolby Digital Plus™ surround sound across the whole room.
A stable Ethernet connection keeps streaming smooth, while the onboard USB ports support a mouse, keyboard, or external storage on every device. The Micro Fusion design keeps each box compact and unobtrusive, fitting neatly into almost any setup.
MAG544 specifications
Hardware
| Chipset | Amlogic S905Y4 |
| Processor | Quad-core ARM Cortex-A35, 2,000 MHz |
| Performance | 16 500 DMIPS |
| RAM | 1 GB DDR3 |
| Flash memory | 4 GB eMMC |
Software
| Operating system | Linux 4.9 |
| Middleware supported | Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available |
Interfaces
| HDMI | HDMI 2.1 |
| Ethernet | 100 Mbps |
| USB | 2 × USB 2.0 |
Sources of media content
| Media sources | PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices |
Audio and video
| Audio formats | MP3, MPA, M4A, OGG, WAV, AAC |
| Video modes | 2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL |
| Video codecs | AV1, H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support |
| Video containers | TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captioning |
| Playlist formats | M3U, M3U8, PLS, CUE |
Standard set
| Package contents | MAG544 set-top box, user manual, HDMI cable, power adapter, remote control, 2 × AAA batteries, packaging |
Dimensions
| Width/depth/height | 115 × 115 × 28 mm |
| Weight | 170 g |
*Infomir does not distribute, broadcast, or otherwise provide television or video content.
