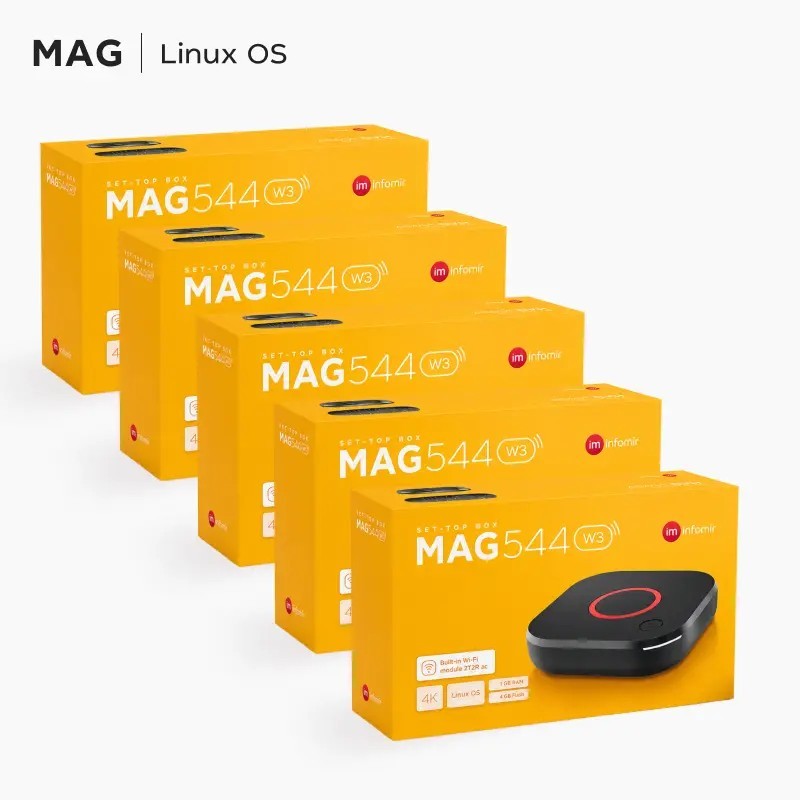

MAG544w3 x5 Pack – 4K Linux IPTV Set-Top Boxes with Wi-Fi
€537.88
Instead of €565.20
Tax included
Five-unit Linux 4.9 STB bundle with built-in Wi-Fi — Amlogic S905Y4 chipset, 4K/HEVC support.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Comments (0)
Need to set up five set-top boxes at the same time? This five-unit MAG544w3 bundle provides smooth playback of high-resolution content, including 4K HDR, with each device powered by the Amlogic S905Y4 chipset and a quad-core ARM Cortex-A35 processor. Running on Linux, the combination of reliable hardware and stable software allows every box to operate continuously for months without requiring a restart.
Support for eight-channel Dolby Digital Plus™ places viewers at the center of the action with immersive surround sound. Built-in Wi-Fi and a standard Ethernet port also give each device the freedom to connect to the network either wirelessly or through a stable wired connection.
MAG544w3 specifications
Hardware
| Chipset | Amlogic S905Y4 |
| Processor | Quad-core ARM Cortex-A35, 2,000 MHz |
| Performance | 16 500 DMIPS |
| RAM | 1 GB DDR3 |
| Flash memory | 4 GB eMMC |
Software
| Operating system | Linux 4.9 |
| Middleware supported | Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available |
Interfaces
| HDMI | HDMI 2.1 |
| Ethernet | 100 Mbps |
| USB | 2 × USB 2.0 |
| Wi-Fi | Built-in 2T2R ac Wi-Fi module |
Sources of media content
| Media sources | PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices |
Audio and video
| Audio formats | MP3, MPA, M4A, OGG, WAV, AAC |
| Video modes | 2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL |
| Video codecs | AV1, H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support |
| Video containers | TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captioning |
| Playlist formats | M3U, M3U8, PLS, CUE |
Standard set
| Package contents | MAG544w3 set-top box, user manual, HDMI cable, power adapter, remote control, 2 × AAA batteries, packaging |
Dimensions
| Width/depth/height | 115 × 115 × 28 mm |
| Weight | 170 g |
*Infomir does not distribute, broadcast, or otherwise provide television or video content.
