- Pack

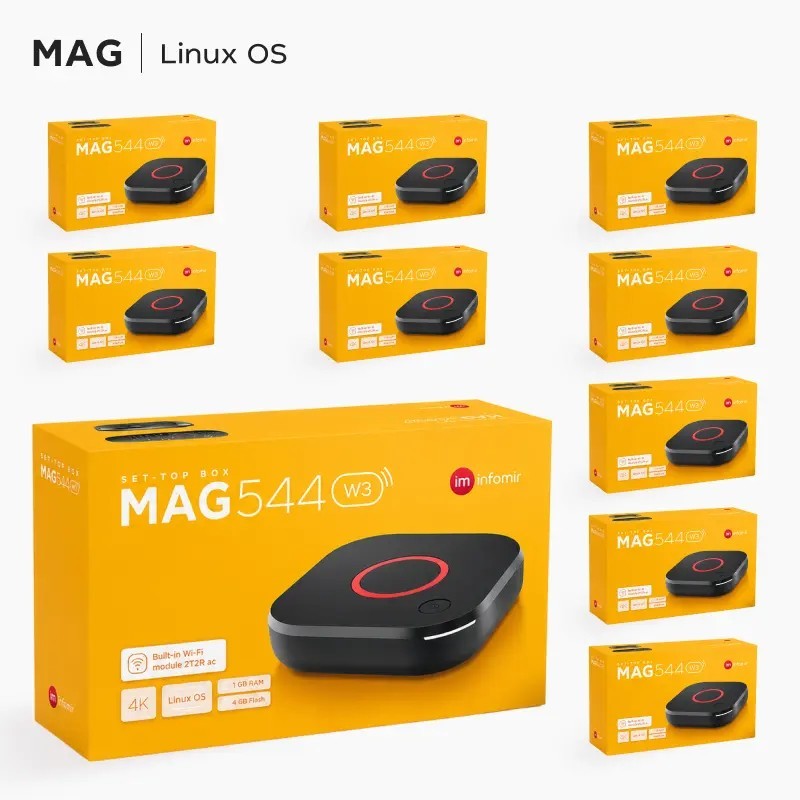

MAG544w3 x10 Pack – 4K Linux IPTV Set-Top Boxes with Wi-Fi
€1,075.76
Instead of €1,130.40
Tax included
Ten-unit set-top box bundle with Linux 4.9 and built-in Wi-Fi — Amlogic S905Y4 chipset with 4K and HEVC support.
Choose quantity & save
- 1 unit €113.04 €113.04 / unit View product
- 2 units €226.08 €113.04 / unit View pack
- 5 units €537.88 €107.58 / unit Save €27.32 (5%) View pack
-
10 units €1,075.76 €107.58 / unit Save €54.64 (5%) Current choice
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Comments (0)
Need to set up ten set-top boxes at the same time? This ten-device MAG544w3 bundle provides smooth playback of high-resolution content, including 4K HDR. Every unit is powered by the Amlogic S905Y4 chipset and a quad-core ARM Cortex-A35 processor. Running on Linux, the combination of reliable software and capable hardware allows each set-top box to operate continuously for months without needing a restart.
Eight-channel Dolby Digital Plus™ support creates immersive surround sound that brings viewers closer to the action. Integrated Wi-Fi and a standard Ethernet port also let each device connect to the network either wirelessly or through a stable wired connection.
MAG544w3 specifications
Hardware
| Chipset | Amlogic S905Y4 |
| Processor | Quad-core ARM Cortex-A35, 2,000 MHz |
| Performance | 16 500 DMIPS |
| RAM | 1 GB DDR3 |
| Flash memory | 4 GB eMMC |
Software
| Operating system | Linux 4.9 |
| Middleware supported | Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available |
Interfaces
| HDMI | HDMI 2.1 |
| Ethernet | 100 Mbps |
| USB | 2 × USB 2.0 |
| Wi-Fi | Built-in 2T2R ac Wi-Fi module |
Sources of media content
| Media sources | PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices |
Audio and video
| Audio formats | MP3, MPA, M4A, OGG, WAV, AAC |
| Video modes | 2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL |
| Video codecs | AV1, H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support |
| Video containers | TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captioning |
| Playlist formats | M3U, M3U8, PLS, CUE |
Standard set
| Package contents | MAG544w3 set-top box, user manual, HDMI cable, power adapter, remote control, 2 × AAA batteries, packaging |
Dimensions
| Width/depth/height | 115 × 115 × 28 mm |
| Weight | 170 g |
*Infomir does not distribute, broadcast, or otherwise provide television or video content.
