MAG544w3 — Linux IPTV Set-Top Box with Built-in Wi-Fi for Stable Streaming
€113.04
Tax included
Original Infomir MAG544w3 — a Linux IPTV box with built-in Wi-Fi, 4K output, AV1 and HEVC decoding, HDMI 2.1 and Ethernet, with the Ministra TV platform pre-integrated.
Choose quantity & save
-
1 unit €113.04 €113.04 / unit Current choice
- 2 units €226.08 €113.04 / unit View pack
- 5 units €537.88 €107.58 / unit Save €27.32 (5%) View pack
- 10 units €1,075.76 €107.58 / unit Save €54.64 (5%) View pack
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Comments (1)
Grade
The MAG544w3 is Infomir's Linux IPTV box with built-in Wi-Fi, designed for IPTV and OTT viewers who want a dedicated box without an app store. It runs Linux 4.9 with the Ministra TV platform pre-integrated, powered by a quad-core ARM Cortex-A35 processor at 2,000 MHz with 1 GB RAM and 4 GB eMMC flash, in a compact 115 × 115 mm housing.

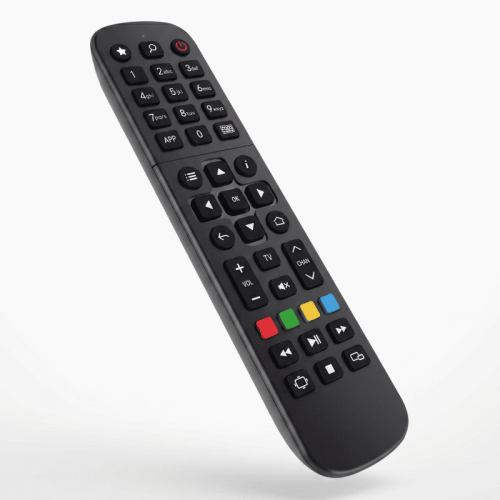

The MAG544w3 outputs video up to 4K (2160p) over HDMI 2.1 and decodes AV1, H.264 and H.265/HEVC. Connect it by Wi-Fi through the built-in 2T2R 802.11ac module or by Ethernet (100 Mbps) – for the most stable 4K stream we recommend the cable where it's available. Two USB 2.0 ports let you add external storage or a keyboard, and the remote control, HDMI cable and power adapter are included.
Buy the original MAG544w3 from an official MAG dealer
DeviceBazar is an official MAG dealer: every MAG544w3 we sell is an original Infomir device supplied through official channels. Orders are dispatched from Frankfurt am Main, Germany, usually within 1–2 business days of payment, with delivery across the European Union and to the United Kingdom, Norway and Switzerland, and a tracking number by email. Need more than one? Choose a 2-, 5- or 10-unit pack in the quantity selector above, or see our wholesale options for larger projects.
Is the MAG544w3 the right MAG box for you?
Choose the MAG544w3 if you want a Linux box for IPTV with Wi-Fi. The MAG540w3 offers the same hardware and Wi-Fi in a smaller, lighter housing. If you're deciding between Linux and Google TV, our article on how the Linux MAG544 and the Google TV MAG555 differ explains the choice. Browse all MAG IPTV boxes or the Linux MAG boxes.
MAG544w3 specifications
Hardware
| Chipset | Amlogic S905Y4 |
| Processor | Quad-core ARM Cortex-A35, 2,000 MHz |
| Performance | 16 500 DMIPS |
| RAM | 1 GB DDR3 |
| Flash memory | 4 GB eMMC |
Software
| Operating system | Linux 4.9 |
| Middleware supported | Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available |

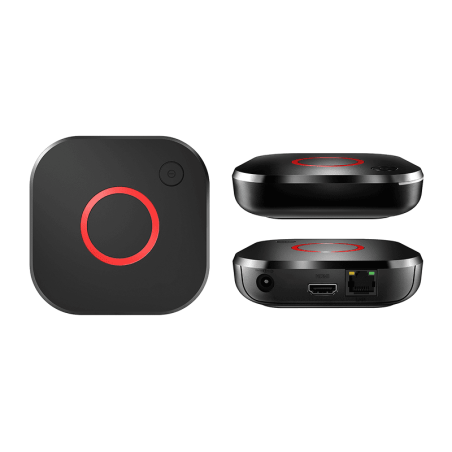

Interfaces
| HDMI | HDMI 2.1 |
| Ethernet | 100 Mbps |
| USB | 2 × USB 2.0 |
| Wi-Fi | Built-in 2T2R ac Wi-Fi module |
Sources of media content
| Media sources | PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices |
Audio and video
| Audio codecs | — |
| Audio formats | MP3, MPA, M4A, OGG, WAV, AAC |
| Video modes | 2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL |
| Video codecs | AV1, H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support |
| Video containers | TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captioning |
| Playlist formats | M3U, M3U8, PLS, CUE |
Standard set

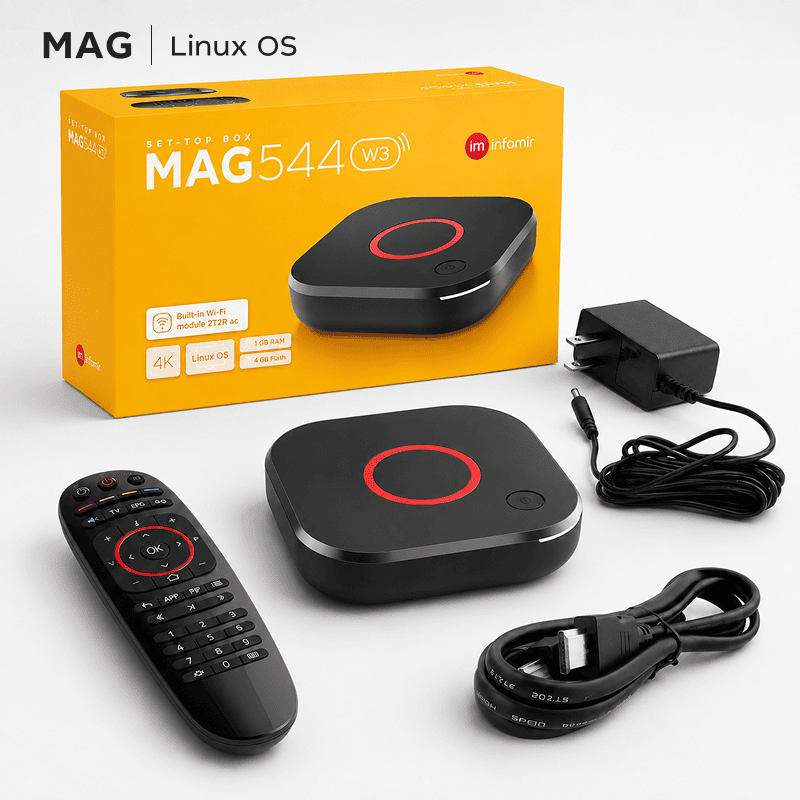

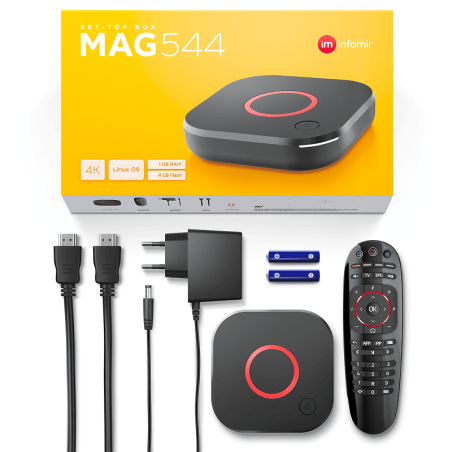

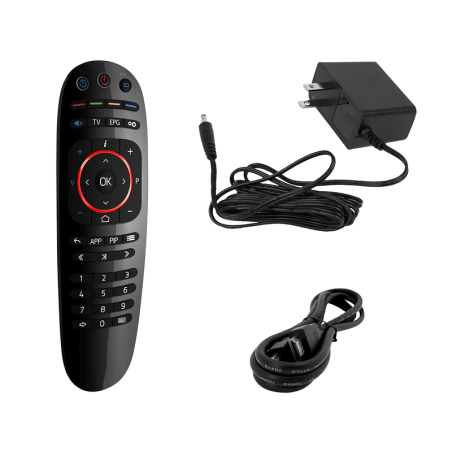

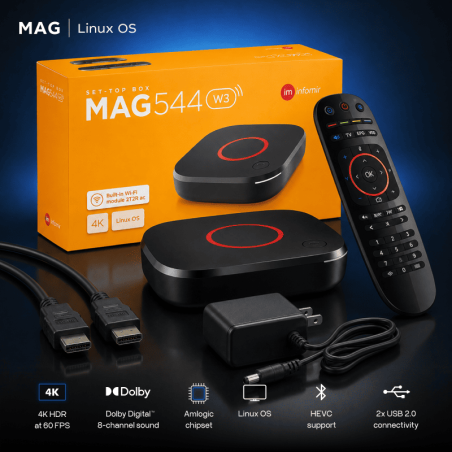

| Package contents | MAG544w3 set-top box, user manual, HDMI cable, power adapter, remote control, 2 × AAA batteries, packaging |
Dimensions

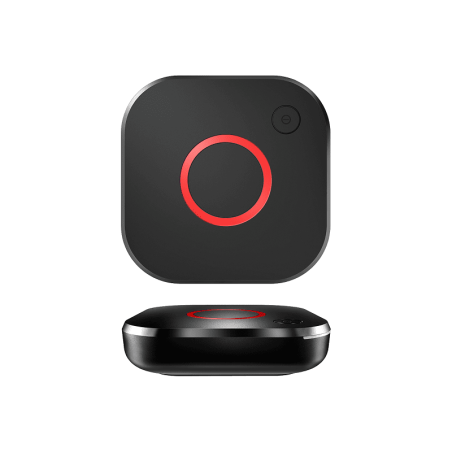

| Width/depth/height | 115 × 115 × 28 mm |
| Weight | 170 g |
MAG544w3 FAQ
How does the MAG544w3 connect to my network?
By Wi-Fi, through its built-in 2T2R 802.11ac module, or by Ethernet (100 Mbps). For the most stable 4K stream, use the cable where possible.
Does the MAG544w3 support 4K?
Yes. It outputs video modes up to 2160p over HDMI 2.1 and decodes AV1, H.264 and H.265/HEVC (HEVC is listed as optional in the specifications above).
Which operating system does the MAG544w3 use?
Linux 4.9 with the Ministra TV platform pre-integrated. Operators can extend the system image with their own applications, customise it or replace it completely.
Which MAG box with Wi-Fi should I choose?
The MAG544w3 and the MAG540w3 share the same processor, memory, interfaces and Wi-Fi module. The MAG544w3 comes in a 115 × 115 × 28 mm housing (170 g), the MAG540w3 in a 120 × 78 × 21 mm housing (110 g).
Does the MAG544w3 come with TV channels or a subscription?
No. The MAG544w3 is a media player. Infomir and DeviceBazar do not distribute, broadcast or otherwise provide television or video content – you use the IPTV/OTT service of your choice.
How much does the MAG544w3 cost and how fast is delivery?
The current MAG544w3 price including VAT is shown at the top of this page. Orders are dispatched from Frankfurt am Main, usually within 1–2 business days after payment; standard delivery within the EU takes up to 6 business days, and you receive a tracking number by email.
Can I order several MAG544w3 units at once?
Yes. Choose a 2-, 5- or 10-unit pack in the quantity selector at the top of this page – each option shows its total and per-unit price. For larger quantities, see our wholesale page.
*Infomir does not distribute, broadcast, or otherwise provide television or video content.
