MAG540w3 — Linux IPTV Set-Top Box with Built-in Wi-Fi for Stable Streaming
€108.89
Tax included
Original Infomir MAG540w3 — a Linux IPTV box with built-in Wi-Fi, 4K output, AV1 and HEVC decoding, HDMI 2.1 and Ethernet, with the Ministra TV platform pre-integrated.
Choose quantity & save
-
1 unit €108.89 €108.89 / unit Current choice
- 2 units €217.77 €108.89 / unit View pack
- 5 units €517.65 €103.53 / unit Save €26.80 (5%) View pack
- 10 units €1,035.30 €103.53 / unit Save €53.60 (5%) View pack
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Comments (0)
The MAG540w3 is Infomir's Linux IPTV box with built-in Wi-Fi – the MAG540 hardware plus a 2T2R 802.11ac wireless module, for rooms where there's no network cable near the TV. It runs Linux 4.9 with the Ministra TV platform pre-integrated, powered by a quad-core ARM Cortex-A35 processor at 2,000 MHz with 1 GB RAM and 4 GB eMMC flash.

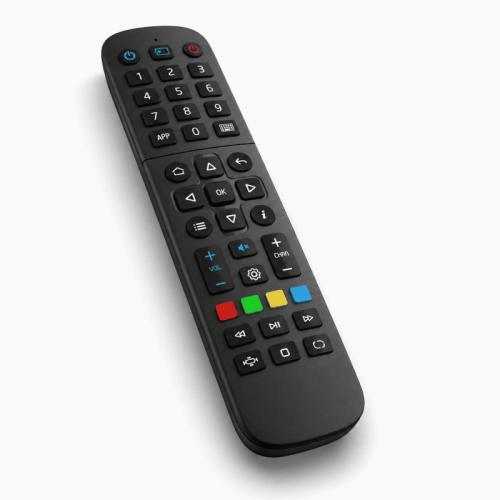

The MAG540w3 outputs video up to 4K (2160p) over HDMI 2.1 and decodes AV1, H.264 and H.265/HEVC. Connect it by Wi-Fi or by Ethernet (100 Mbps) – for the most stable 4K stream we recommend the cable where it's available. Two USB 2.0 ports let you add external storage or a keyboard, and the remote control, HDMI cable and power adapter are included.
Buy the original MAG540w3 from an official MAG dealer
DeviceBazar is an official MAG dealer: every MAG540w3 we sell is an original Infomir device supplied through official channels. Orders are dispatched from Frankfurt am Main, Germany, usually within 1–2 business days of payment, with delivery across the European Union and to the United Kingdom, Norway and Switzerland, and a tracking number by email. Need more than one? Choose a 2-, 5- or 10-unit pack in the quantity selector above, or see our wholesale options for larger projects.
Is the MAG540w3 the right MAG box for you?
Choose the MAG540w3 if you want a Linux box for IPTV and need Wi-Fi. If the box will sit next to your router, the MAG540 offers the same hardware without Wi-Fi; the MAG544w3 combines the same hardware and Wi-Fi in a different housing. For Google Play apps and voice search, see the MAG555 with Google TV. Browse all MAG IPTV boxes or the Linux MAG boxes.
MAG540w3 specifications
Hardware
| Chipset | Amlogic S905Y4 |
| Processor | Quad-core ARM Cortex-A35, 2,000 MHz |
| Performance | 16 500 DMIPS |
| RAM | 1 GB DDR3 |
| Flash memory | 4 GB eMMC |
Software
| Operating system | Linux 4.9 |
| Middleware supported | Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available |

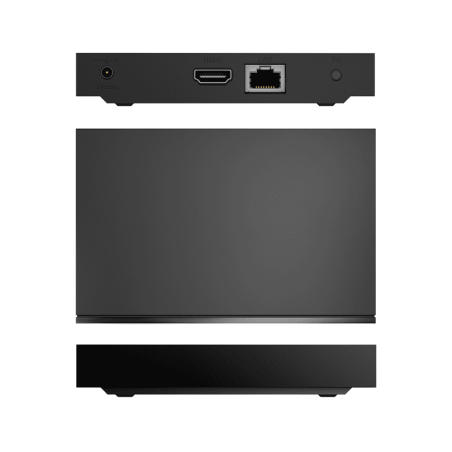

Interfaces
| HDMI | HDMI 2.1 |
| Ethernet | 100 Mbps |
| USB | 2 × USB 2.0 |
| Wi-Fi | Built-in 2T2R ac Wi-Fi module |
Sources of media content
| Media sources | PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices |
Audio and video
| Audio formats | MP3, MPA, M4A, OGG, WAV, AAC |
| Video modes | 2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL |
| Video codecs | AV1, H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support |
| Video containers | TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captioning |
| Playlist formats | M3U, M3U8, PLS, CUE |
Standard set

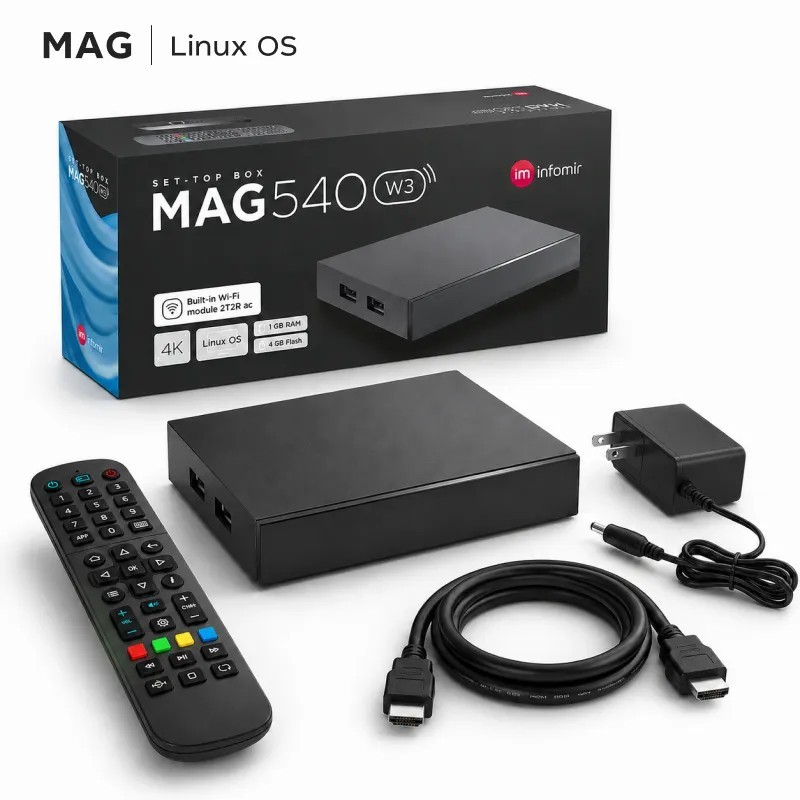

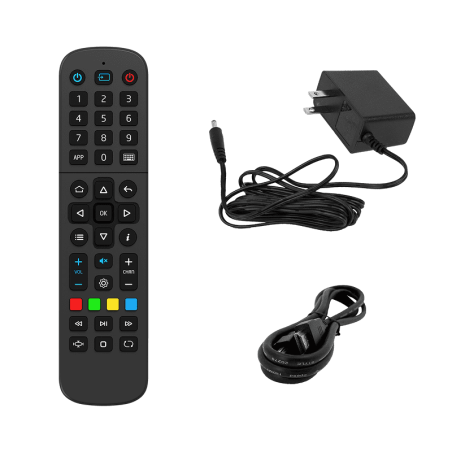

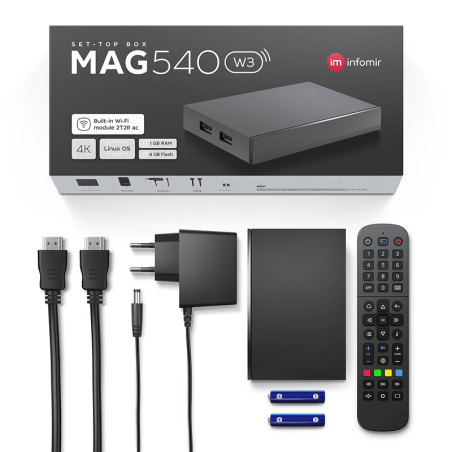

| Package contents | MAG540w3 set-top box, user manual, HDMI cable, power adapter, remote control, 2 × AAA batteries, packaging |
Dimensions
| Width/depth/height | 120 × 78 × 21 mm |
| Weight | 110 g |
MAG540w3 FAQ
How does the MAG540w3 connect to my network?
By Wi-Fi, through its built-in 2T2R 802.11ac module, or by Ethernet (100 Mbps). For the most stable 4K stream, use the cable where possible.
Is the MAG540w3 the same as the MAG540?
The hardware is the same – processor, memory, HDMI 2.1, Ethernet and USB – and the MAG540w3 adds the built-in Wi-Fi module. Choose the MAG540 if you'll always connect by cable.
Does the MAG540w3 support 4K?
Yes. It outputs video modes up to 2160p over HDMI 2.1 and decodes AV1, H.264 and H.265/HEVC (HEVC is listed as optional in the specifications above).
Does the MAG540w3 come with TV channels or a subscription?
No. The MAG540w3 is a media player running Linux 4.9 with the Ministra TV platform. Infomir and DeviceBazar do not distribute, broadcast or otherwise provide television or video content – you use the IPTV/OTT service of your choice.
How much does the MAG540w3 cost and how fast is delivery?
The current MAG540w3 price including VAT is shown at the top of this page. Orders are dispatched from Frankfurt am Main, usually within 1–2 business days after payment; standard delivery within the EU takes up to 6 business days, and you receive a tracking number by email.
Can I order several MAG540w3 units at once?
Yes. Choose a 2-, 5- or 10-unit pack in the quantity selector at the top of this page – each option shows its total and per-unit price. For larger quantities, see our wholesale page.
*Infomir does not distribute, broadcast, or otherwise provide television or video content.
