MAG540 Linux Set-Top Box: stable performance with 4K and HEVC
€97.57
Tax included
Original Infomir MAG540 — a Linux IPTV box with 4K output, AV1 and HEVC decoding, HDMI 2.1 and Ethernet, with the Ministra TV platform pre-integrated.
Choose quantity & save
-
1 unit €97.57 €97.57 / unit Current choice
- 2 units €195.14 €97.57 / unit View pack

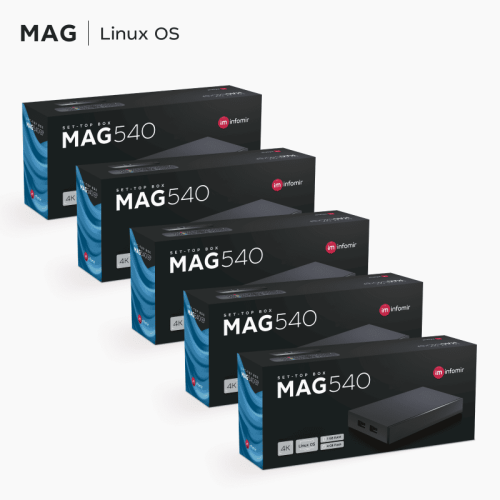

- 5 units €469.46 €93.89 / unit Save €18.39 (4%) View pack
- 10 units €938.91 €93.89 / unit Save €36.79 (4%) View pack
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Comments (0)

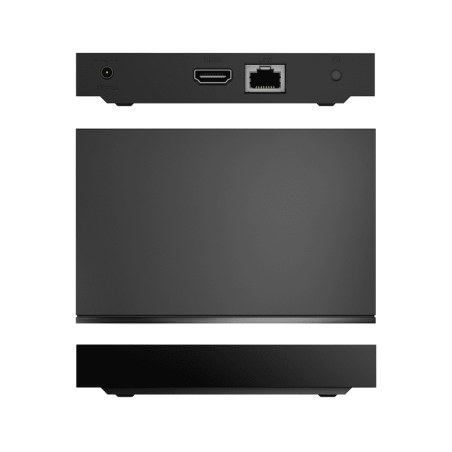

The MAG540 is Infomir's Linux IPTV box for viewers who want a dedicated, cable-connected set-top box. It runs Linux 4.9 with the Ministra TV platform pre-integrated, and its quad-core ARM Cortex-A35 processor at 2,000 MHz, 1 GB RAM and 4 GB eMMC flash are built for everyday IPTV and OTT viewing. There's no app store to get in the way – the MAG540 is designed around your IPTV service.

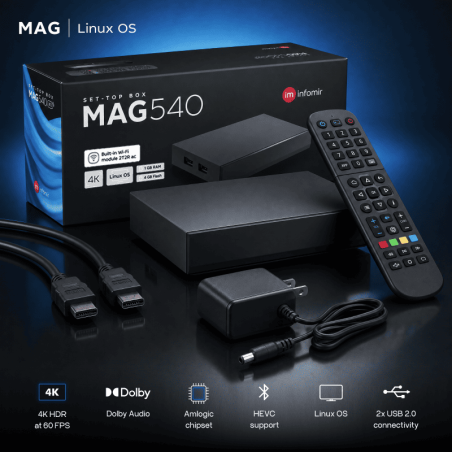

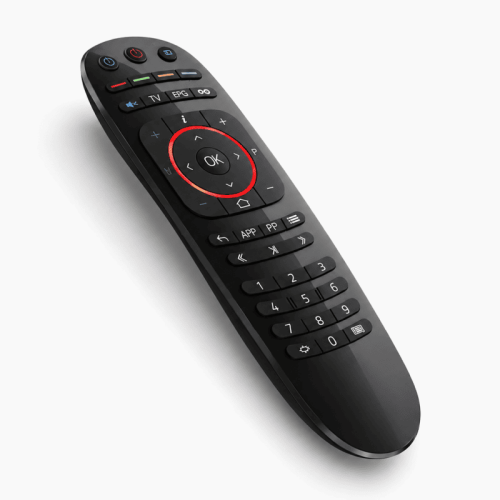

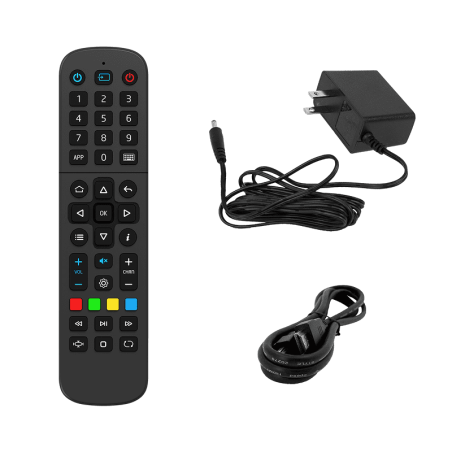

The MAG540 outputs video up to 4K (2160p) over HDMI 2.1 and decodes AV1, H.264 and H.265/HEVC. It connects to your router by Ethernet (100 Mbps), and two USB 2.0 ports let you add external storage or a keyboard. The remote control, HDMI cable and power adapter are included.
Buy the original MAG540 from an official MAG dealer
DeviceBazar is an official MAG dealer: every MAG540 we sell is an original Infomir device supplied through official channels. Orders are dispatched from Frankfurt am Main, Germany, usually within 1–2 business days of payment, with delivery across the European Union and to the United Kingdom, Norway and Switzerland, and a tracking number by email. Need more than one? Choose a 2-, 5- or 10-unit pack in the quantity selector above, or see our wholesale options for larger projects.
Is the MAG540 the right MAG box for you?

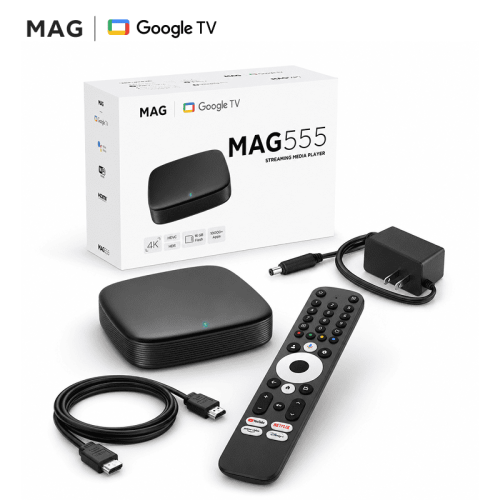

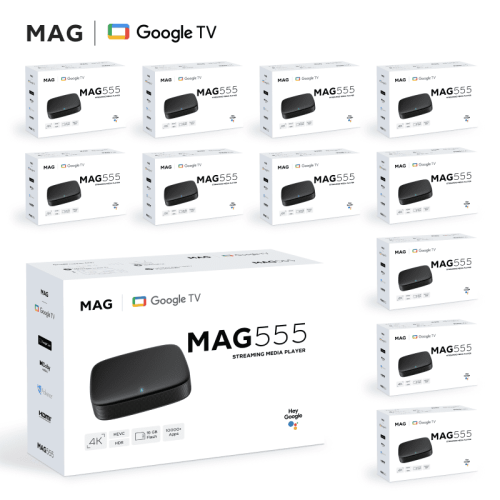

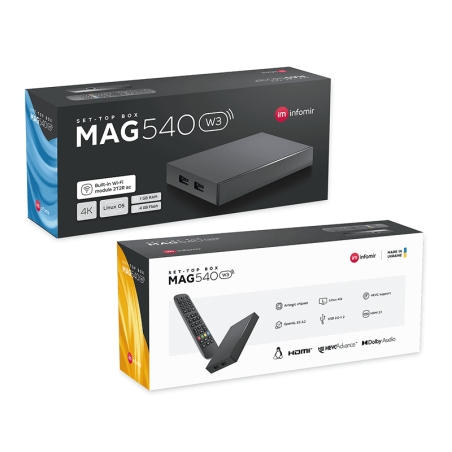

Choose the MAG540 if the box will sit near your router and you want a simple Linux box for IPTV. If you need Wi-Fi, the MAG540w3 has the same hardware with a built-in Wi-Fi module. For Google Play apps and voice search, see the MAG555 with Google TV. You'll find every model in our range of MAG IPTV boxes, and the Linux models together under Linux MAG boxes.
MAG540 specifications
Hardware
| Chipset | Amlogic S905Y4 |
| Processor | Quad-core ARM Cortex-A35, 2,000 MHz |
| Performance | 16 500 DMIPS |
| RAM | 1 GB DDR3 |
| Flash memory | 4 GB eMMC |
Software
| Operating system | Linux 4.9 |
| Middleware supported | Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available |
Interfaces
| HDMI | HDMI 2.1 |
| Ethernet | 100 Mbps |
| USB | 2 × USB 2.0 |
Sources of media content
| Media sources | PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices |
Audio and video
| Audio formats | MP3, MPA, M4A, OGG, WAV, AAC |
| Video modes | 2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL |
| Video codecs | AV1, H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support |
| Video containers | TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captioning |
| Playlist formats | M3U, M3U8, PLS, CUE |
Standard set

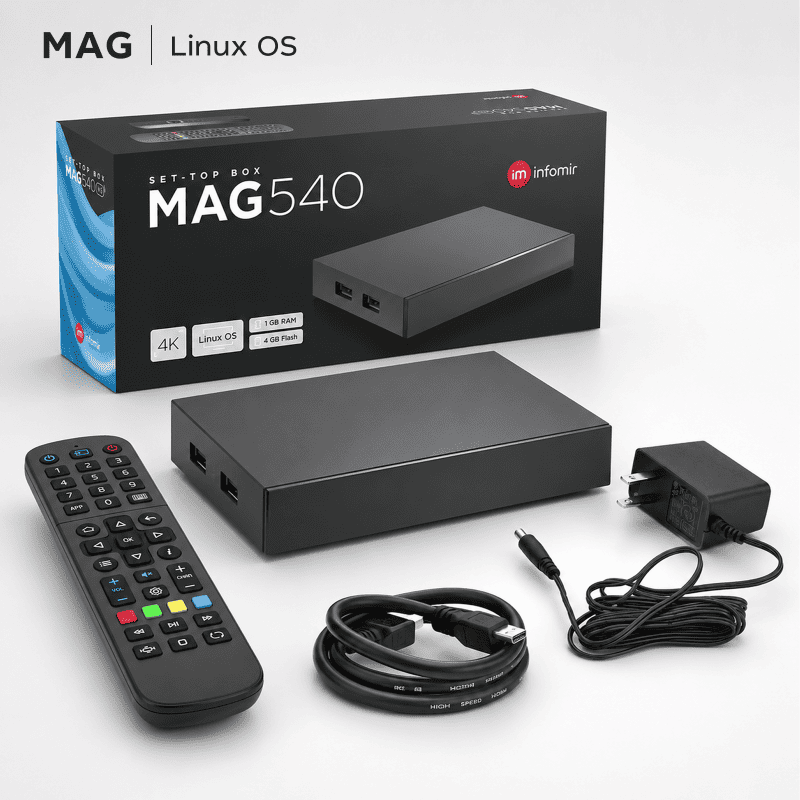

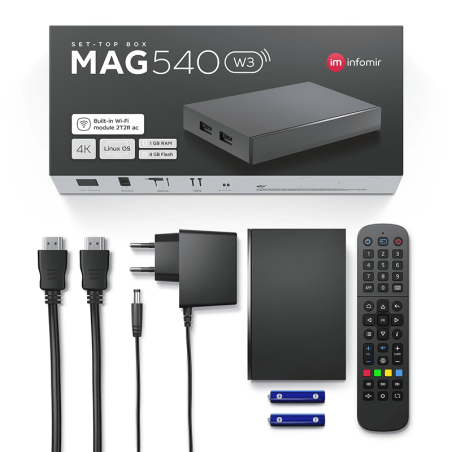

| Package contents | MAG540 set-top box, user manual, HDMI cable, power adapter, remote control, 2 × AAA batteries, packaging |
Dimensions
| Width/depth/height | 120 × 78 × 21 mm |
| Weight | 110 g |
MAG540 FAQ
Does the MAG540 have Wi-Fi?
No. The MAG540 connects by Ethernet (100 Mbps). If you need a wireless connection, choose the MAG540w3, which adds a built-in Wi-Fi module.
Does the MAG540 support 4K?
Yes. It outputs video modes up to 2160p over HDMI 2.1 and decodes AV1, H.264 and H.265/HEVC (HEVC is listed as optional in the specifications above).
Which operating system does the MAG540 use?
Linux 4.9 with the Ministra TV platform pre-integrated. Operators can extend the system image with their own applications, customise it or replace it completely.
Does the MAG540 come with TV channels or a subscription?
No. The MAG540 is a media player. Infomir and DeviceBazar do not distribute, broadcast or otherwise provide television or video content – you use the IPTV/OTT service of your choice.
How much does the MAG540 cost and how fast is delivery?
The current MAG540 price including VAT is shown at the top of this page. Orders are dispatched from Frankfurt am Main, usually within 1–2 business days after payment; standard delivery within the EU takes up to 6 business days, and you receive a tracking number by email.
Can I order several MAG540 units at once?
Yes. Choose a 2-, 5- or 10-unit pack in the quantity selector at the top of this page – each option shows its total and per-unit price. For larger quantities, see our wholesale page.
*Infomir does not distribute, broadcast, or otherwise provide television or video content.
