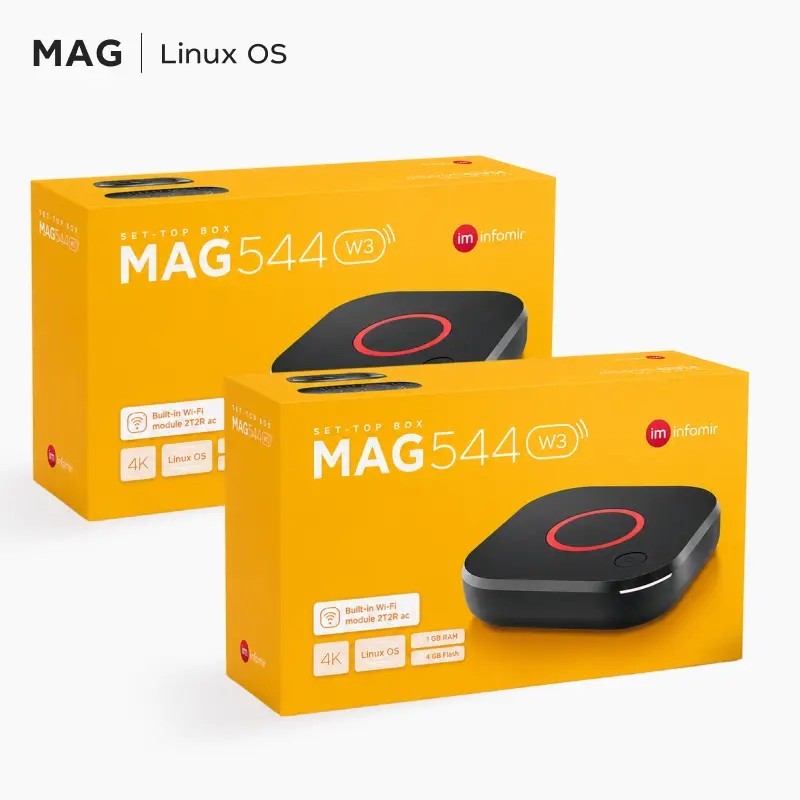

MAG544w3 x2 Pack – 4K Linux IPTV Set-Top Boxes with Wi-Fi
€226.08
Instead of €226.08
Tax included
Linux 4.9 STB bundle with built-in Wi-Fi — Amlogic S905Y4 chipset, 4K/HEVC support. Two units.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Comments (0)
This two-unit MAG544w3 bundle combines the proven Linux-based performance of the MAG544w3 with the added flexibility of built-in Wi-Fi. Each device is powered by the Amlogic S905Y4-B chipset and a quad-core ARM Cortex-A35 processor, providing smooth, stable operation even during intensive or prolonged use.
Connecting to the network is easy — use the integrated Wi-Fi module for wireless convenience or the 100 Mbps Ethernet port for a reliable wired connection. Support for eight-channel Dolby Digital Plus™ allows you to connect up to seven speakers and a subwoofer, creating rich, immersive surround sound.
Every MAG544w3 comes with a comfortable infrared remote control, while two built-in USB 2.0 ports make it easy to connect a mouse, keyboard, or external storage device for added functionality and convenience.
MAG544w3 specifications
Hardware
| Chipset | Amlogic S905Y4 |
| Processor | Quad-core ARM Cortex-A35, 2,000 MHz |
| Performance | 16 500 DMIPS |
| RAM | 1 GB DDR3 |
| Flash memory | 4 GB eMMC |
Software
| Operating system | Linux 4.9 |
| Middleware supported | Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available |
Interfaces
| HDMI | HDMI 2.1 |
| Ethernet | 100 Mbps |
| USB | 2 × USB 2.0 |
| Wi-Fi | Built-in 2T2R ac Wi-Fi module |
Sources of media content
| Media sources | PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices |
Audio and video
| Audio formats | MP3, MPA, M4A, OGG, WAV, AAC |
| Video modes | 2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL |
| Video codecs | AV1, H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support |
| Video containers | TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captioning |
| Playlist formats | M3U, M3U8, PLS, CUE |
Standard set
| Package contents | MAG544w3 set-top box, user manual, HDMI cable, power adapter, remote control, 2 × AAA batteries, packaging |
Dimensions
| Width/depth/height | 115 × 115 × 28 mm |
| Weight | 170 g |
*Infomir does not distribute, broadcast, or otherwise provide television or video content.
