MAG540 Linux IPTV Set-Top Box Review: Features, Performance & Specifications

11/05/2026

The latest generation of Infomir's MAG series combines modern hardware with a proven Linux operating system to create a powerful IPTV and OTT streaming platform. The MAG540 and MAG540w3 are designed for stable long-term operation, smooth 4K video playback, and seamless integration into both residential and professional IPTV environments.

Whether you're an IPTV operator deploying thousands of devices or a home user looking for a reliable set-top box, the MAG540 lineup delivers a balance of performance, simplicity, and stability.

What’s Included in the Box?

The MAG540 series arrives with everything required for a quick and straightforward installation.

MAG540 or MAG540w3 set-top box
Programmable infrared remote control
Two AAA batteries
HDMI cable
Power adapter
User manual

The complete package allows users to connect the device and begin streaming within minutes of unboxing.

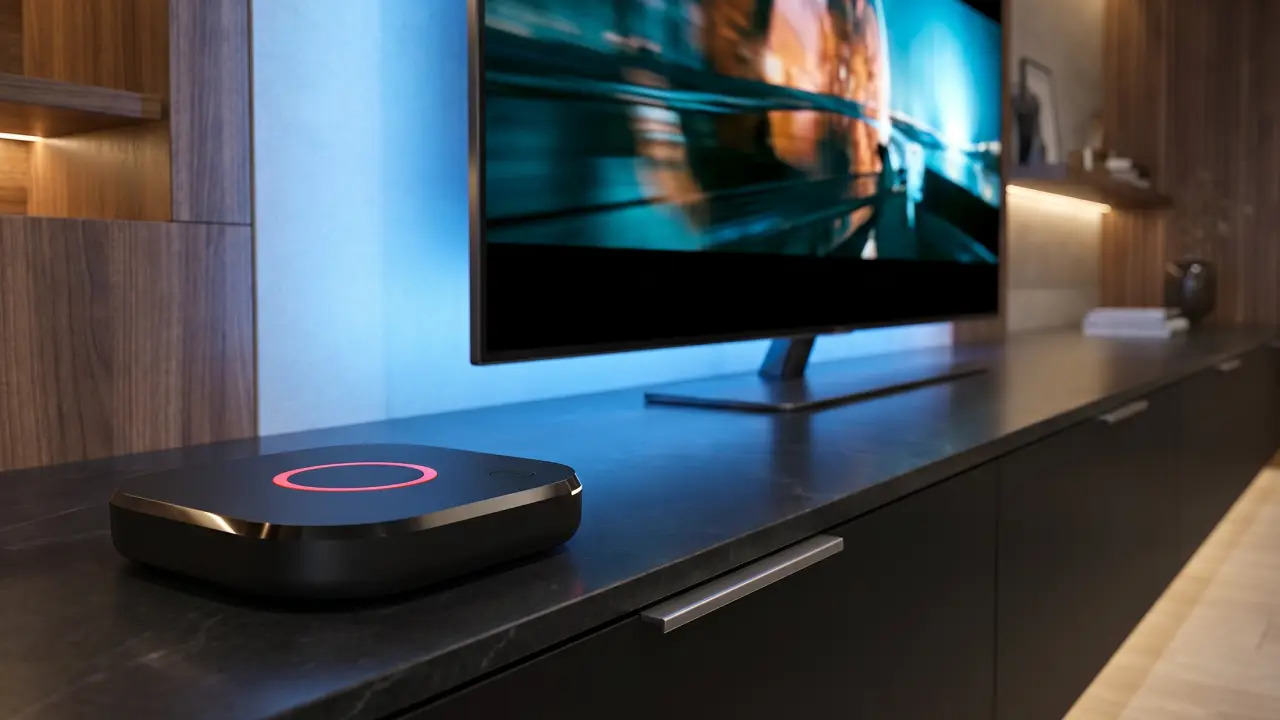

Design and Build Quality

The MAG540 series features a compact and minimalist black enclosure that fits naturally into modern entertainment systems. Despite its small footprint, the device includes all essential ports and connectivity options required for IPTV streaming.

The front panel contains an LED status indicator and infrared receiver for remote-control operation. On the rear and side panels, users will find HDMI, Ethernet, USB ports, and wireless networking capabilities on the MAG540w3 model.

The device is designed to operate continuously while remaining energy efficient and unobtrusive in daily use.

Hardware Specifications

At the heart of the MAG540 platform is the Amlogic S905Y4 chipset powered by a quad-core ARM Cortex-A35 processor. This hardware platform delivers responsive performance while maintaining efficient power consumption.

Processor: Quad-core ARM Cortex-A35
Chipset: Amlogic S905Y4
Memory: 1 GB RAM
Storage: 4 GB eMMC
Operating System: Linux 4.9
Video Output: Up to 4K Ultra HD at 60 frames per second
Video Codec Support: HEVC (H.265)
HDMI 2.1 output
2 × USB 2.0 ports
Gigabit Ethernet connection

The combination of efficient hardware and lightweight Linux software provides smooth navigation and stable operation, even during extended streaming sessions.

MAG540 vs MAG540w3

The primary distinction between the two models lies in networking capabilities.

MAG540: Wired Ethernet connectivity only.
MAG540w3: Ethernet plus integrated dual-band Wi-Fi.

The MAG540w3 supports both 2.4 GHz and 5 GHz wireless networks, providing additional flexibility when a wired network connection is unavailable.

Streaming Performance

The MAG540 series was developed specifically for IPTV and OTT streaming services. Hardware-accelerated HEVC decoding allows the device to process high-resolution content efficiently while reducing bandwidth requirements.

Users can enjoy smooth playback of Full HD and 4K content with minimal delays and fast channel switching. The Linux operating system contributes to consistent responsiveness and stable long-term performance.

Unlike many consumer streaming devices that become slower over time, MAG devices are known for their ability to operate continuously for months while maintaining stable performance.

IPTV and Middleware Compatibility

The MAG540 platform supports a broad range of IPTV and OTT deployments. It integrates with popular middleware solutions and supports modern streaming technologies commonly used by service providers.

Supported capabilities include:

Live IPTV channels
Video-on-demand libraries
Catch-up TV services
Electronic program guides (EPG)
Multi-language audio tracks
Subtitles and closed captions
USB media playback

This flexibility makes the device suitable for residential IPTV, hospitality projects, educational institutions, and large-scale operator deployments.

Audio and Multimedia Features

The MAG540 series supports Dolby Digital Plus™, enabling immersive multi-channel audio when connected to compatible sound systems.

The USB ports can also be used to connect external storage devices, keyboards, mice, and other peripherals. This allows users to access local media content in addition to IPTV services.

Support for multiple multimedia formats makes the device useful not only for television streaming but also for broader media playback applications.

Connectivity Options

Reliable connectivity is essential for IPTV performance, and the MAG540 lineup offers several options.

Gigabit Ethernet: Stable wired networking for uninterrupted streaming.
Dual-band Wi-Fi (MAG540w3): Support for both 2.4 GHz and 5 GHz wireless networks.
HDMI 2.1: Modern video connectivity with support for 4K output.
USB ports: Connectivity for external devices and storage.

Setup is straightforward. Users simply connect the set-top box to a television via HDMI, establish a network connection, and follow the on-screen setup process.

Advantages Over Previous MAG Generations

Compared with older MAG models, the MAG540 series offers improved processing power, enhanced video decoding capabilities, and more advanced networking features.

The newer chipset enables smoother 4K playback, faster menu navigation, and improved support for modern streaming standards. The addition of dual-band Wi-Fi on the MAG540w3 also provides greater deployment flexibility.

These improvements help ensure the device remains relevant as IPTV services continue to evolve and require higher performance.

Who Is the MAG540 Designed For?

The MAG540 lineup is suitable for a wide range of users.

IPTV operators requiring a stable Linux-based platform.
Home users seeking reliable 4K streaming performance.
Hotels and hospitality projects deploying IPTV services.
Businesses requiring network-based media distribution.
Smart-home users looking for dependable media playback devices.

Its combination of stability, performance, and ease of deployment makes it an attractive choice across multiple industries and use cases.

Conclusion

The MAG540 and MAG540w3 represent a modern generation of Linux-powered IPTV set-top boxes designed for long-term reliability and high-quality streaming. Equipped with the Amlogic S905Y4 chipset, 4K Ultra HD support, HEVC decoding, and robust networking options, these devices provide a dependable platform for IPTV and OTT services.

Whether used in a home entertainment system, hospitality deployment, or large-scale IPTV network, the MAG540 series delivers a strong combination of performance, flexibility, and operational stability.
